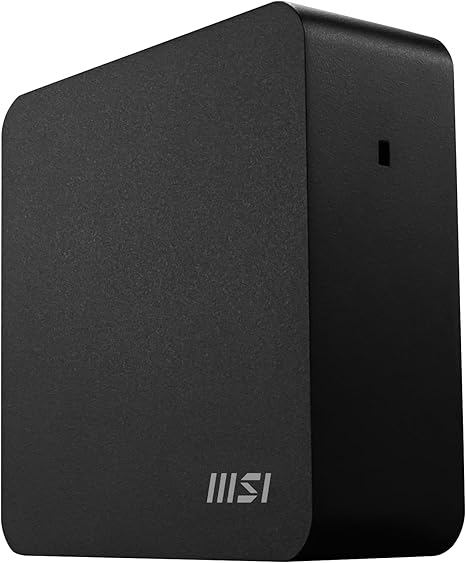

Cubi NUC 1M Best Business & Office Desktop Mini PC 0.8L

About this item

• 0.826-Liter with VESA mountable design
• Two Thunderbolt 4, and one of them supports PD-in (up to 100W)
• Dual 2.5G LAN & dTPM support
• Quadruple display support & easy to upgrade design
• MSI Desktop Power Link technology allows Cubi NUC to be powered by an MSI-selected monitor.

• Primary Information

  System Type:	Personal Computer
  Model:	Cubi NUC 1M
  Processor / Type:	Core 3
  Processor / Manufacturer:	Intel
  Multi-Core Technology:	6-Core
  Processor / Clock Speed:	1.2 GHz
  Cache Memory Installed Size:	10 MB
  Max Turbo Frequency:	4.7 GHz
  Processor / Number:	100U
  Cache Memory Installed Size:	10 MB
  RAM / Technology:	DDR5
  RAM / Total Slots Qty:	2
  RAM / Memory Speed:	5200 MHz
  RAM Form Factor:	SODIMM
  RAM / Max Supported Size:	64 GB
  Hard Drive / Type:	SSD
  Hard Drive / Interface Type:	PCIe NVMe
  Data Link Protocol:	Wi-Fi, Bluetooth
  Graphics Controller:	Intel Graphics
  Operating System:	None
  Power / Device Type:	Power Supply
  Power / Provided (W):	120 Watt
  Interfaces & Connections:	2x USB 3.2 Gen 2 Type A; 1x Mic-in/Headphone-out combo; 1x Card Reader; 2x USB 3.2 Gen 2 Type A (R); 2x (Thunderbolt 4) Thunderbolt (R); 2x RJ45; 2x (v2.0) HDMI out

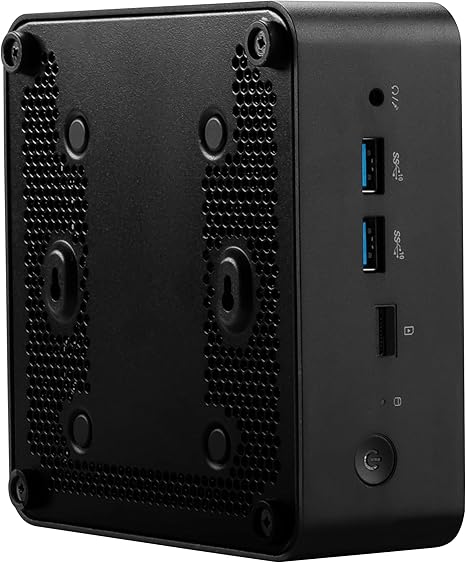

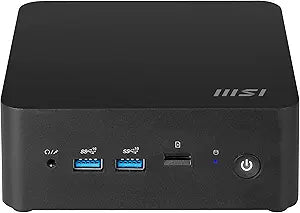

  Front I/O Ports:	2x USB 3.2 Gen 2 Type A; 1x Mic-in/Headphone-out combo; 1x Card Reader

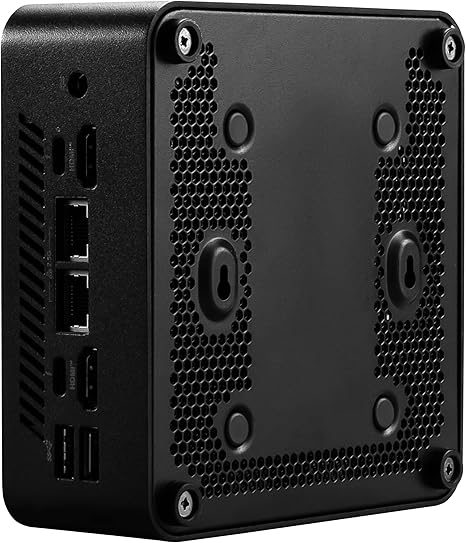

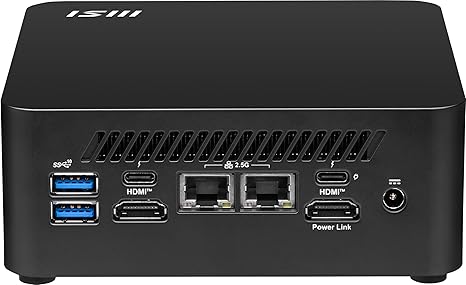

  Rear I/O Ports:	2x USB 3.2 Gen 2 Type A (R); 2x (Thunderbolt 4) Thunderbolt (R); 2x RJ45; 2x (v2.0) HDMI out
  Expansion Slots Total (Free):	1x SATA connectors
  Width:	5.34 Inch
  Depth:	5.22 Inch
  Height:	1.97 Inch
  Weight:	0.63 Kg
  Service & Support Type:	3Y WARRANTY

• Memory

  Cache Memory Type:	Smart Cache
  RAM / Total Slots Qty:	2
  RAM / Technology:	DDR5
  RAM / Memory Speed:	5200 MHz
  RAM Form Factor:	SODIMM
  RAM / Max Supported Size:	64 GB

• Processor

  Processor / Type:	Core 3
  Processor / Manufacturer:	Intel
  Multi-Core Technology:	6-Core
  Processor / Clock Speed:	1.2 GHz
  Max Turbo Frequency:	4.7 GHz
  Processor / Number:	100U
  Cache Memory Type:	Smart Cache
  Cache Memory Installed Size:	10 MB

• Storage

  Hard Drive / Type:	SSD
  Hard Drive / Interface Type:	PCIe NVMe

• Expansion

  Interfaces & Connections:	2x USB 3.2 Gen 2 Type A; 1x Mic-in/Headphone-out combo; 1x Card Reader; 2x USB 3.2 Gen 2 Type A (R); 2x (Thunderbolt 4) Thunderbolt (R); 2x RJ45; 2x (v2.0) HDMI out
  Expansion Slots Total (Free):	1x SATA connectors
  Front I/O Ports:	2x USB 3.2 Gen 2 Type A; 1x Mic-in/Headphone-out combo; 1x Card Reader
  Rear I/O Ports:	2x USB 3.2 Gen 2 Type A (R); 2x (Thunderbolt 4) Thunderbolt (R); 2x RJ45; 2x (v2.0) HDMI out

• Networking

  Data Link Protocol:

  Wi-Fi, Bluetooth

• Power

  Power / Device Type:	Power Supply
  Power / Provided (W):	120 Watt

• Video

  Graphics Controller:

  Intel Graphics

• Dimensions&Miscellaneous

  Width:	5.34 Inch
  Depth:	5.22 Inch
  Height:	1.97 Inch
  Weight:	0.63 Kg
